Pretty Data All in Neat Rows

DBA Mary extraordinary,
What makes your tables grow?
When queries propel through my TSQL shell
data ingests into neat little rows.

This will likely be the last post in my series about monitoring the pihole DNS server. You can find part 1, “Your Pi-Hole is a Rich Source of Data,” here and part 2, “Mind the Gap,” here. If you’ve been reading along, it should be clear that this is not so much about the pi-hole in particular as it is about ways New Relic allows you to manipulate observability data. The truth is that the pi-hole provided me with a number of great examples of the different ways data can present itself out of various systems.

With that said, in this post, I’m going to address a situation that happens a lot with JSON output — data that should be recorded as sequential rows under a single field but instead ends up splitting across multiple fields.

I’m going to continue to leverage the pi-hole for this example. In the previous post, all of our attention was focused on the output of a single API endpoint: ?summaryRaw. But, the pi-hole has many other endpoints that emit data, including:

• topItems=xx — show the xx top domains and top advertisers being requested.
• topClients=xx— show the top sources of DNS queries within your network.
  • getForwardDestinations – Show the external DNS servers where DNS queries are going once they bounce out of your network.
• getQueryTypes — Show the volume of each type of DNS query (A, AAAA, PTR, SRV, etc.).

(You can read about all the possible API endpoints in this post.).

So, let’s consider a Flex integration that is set up to gather some of the information I’ve identified above:

integrations:
  - name: nri-flex
    config:
      name: badpihole
      apis:
        - name: badpihole_querytypes
          url: http://pi.hole/admin/api.php?getQueryTypes&auth=abcdefg1234567890 #your auth key goes here
          headers:
            accept: application/json

(Note that I’ve purposely named the elements “bad” so you can find them because, ultimately, I don’t think they are valuable in the current format)

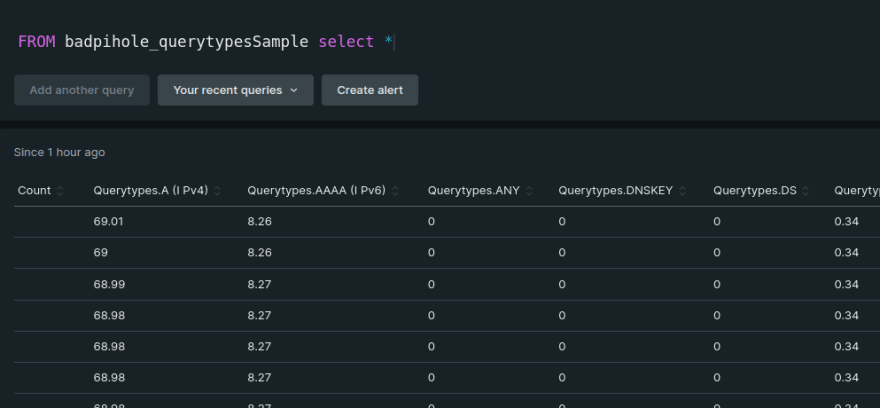

When you look at it in NRQL, you’ll see a result like this:

The issue becomes even worse when the results are highly variable. For example, topItems will return the top domains and advertisers for a given period. While that MIGHT remain somewhat consistent, in larger or more dynamic networks, that list can change drastically.

So with the YAML element of:

        - name: badpihole_topitems
          url: http://pi.hole/admin/api.php?topItems=10&auth=abcdefg1234567890 #your auth key goes here
          headers:
            accept: application/json

You could see your column count go up moment by moment:

What’s needed is to transform the incoming data so that rather than appearing like this:

"top_ads.unity3d.com": 54,
"top_ads.display.ravm.tv": 90,
"top_ads.hbopenbid.pubmatic.com": 49,

Instead, it’s re-organized into a format more like this:

Name: "top_ads.display.ravm.tv",
Count: 90,
Name: "top_ads.display.ravm.tv"
Count: 90,
Name: "top_ads.hbopenbid.pubmatic.com"
Count: 49,

The result of which looks like this when displayed in New Relic:

Phenomenal Cosmic Power, Itty Bitty Command

How is this transformation achieved? Through the remarkably simple use of the jq utility. I mentioned jq in part 2 of this series where the usage was far more complex.

As so often happens in tech, what we’re asking for is a much more complex operation, and yet the structure is way easier to understand:

jq: >
  .[]|.top_queries|to_entries|map({queryname:.key,querycount:.value})

As with the jq wizardry in my last post; this is largely due to the genius of my colleague Haihong Ren. Putting this line into the context of a complete Flex YAML file, it would look like this:

integrations:
  - name: nri-flex
    config:
      name: pihole
      apis:
        - name: pihole_topitems
          url: http://pi.hole/admin/api.php?topItems=10&auth=abcdefg1234567890 #your auth key goes here
          headers:
            accept: application/json
          jq: >
            .[]|.top_queries|to_entries|map({queryname:.key,querycount:.value})

The result of which, as I showed earlier, is data that is easier to summarize, query, sort, select, and display.

Special Bonus Clip-and-Save Section

If you’d like to try out this entire thing for yourself but would prefer not to have to BUILD it all yourself (and in this, I applaud your commitment to the economy of effort), then below you will find the complete YAML file. And here is a link to a quick start with the dashboard pictured above.

integrations:
  - name: nri-flex
    config:
      name: pihole
      variable_store:
        authkey: abcdefg1234567890 #your auth key goes here
# In order for this integration to work, you need to include your pihole API key.
# You can get the token by loggin into your pihole and going to Settings/API/Show API token
#   or by connecting directly to the pihole device and getting the WEBPASSWORD variable from /etc/pihole/setupVars.conf

      apis:
        - name: pihole_summary
          url: http://pi.hole/admin/api.php?summaryRaw&auth=${var:authkey}
          headers:
            accept: application/json

        - name: pihole_topitems
          url: http://pi.hole/admin/api.php?topItems=10&auth=${var:authkey}
          headers:
            accept: application/json
          jq: >
            .[]|.top_queries|to_entries|map({queryname:.key,querycount:.value})

        - name: pihole_topclients
          url: http://pi.hole/admin/api.php?topClients=10&auth=${var:authkey}
          headers:
            accept: application/json
          jq: >
            .[]|.top_sources|to_entries|map({clientname:.key,clientcount:.value})

        - name: pihole_toforwarddest
          url: http://pi.hole/admin/api.php?getForwardDestinations&auth=${var:authkey}
          headers:
            accept: application/json
          jq: >
            .[]|.forward_destinations|to_entries|map({destinationname:.key,destinationcount:.value})

        - name: pihole_querytypes
          url: http://pi.hole/admin/api.php?getQueryTypes&auth=${var:authkey}
          headers:
            accept: application/json
          jq: >
            .[]|.querytypes|to_entries|map({querytype:.key,querycount:.value})

        - name: pihole_recentblocked
          url: http://pi.hole/admin/api.php?recentBlocked&auth=${var:authkey}
          headers:
            accept: application/json
